- Available in Round, Oval and Square Piston bore types.
- Various configuration available from 2 – 12 row and 26mm dia – 65mm x 85mm oval.
- New style anti-tamper setting bolts to help prevent operational error.

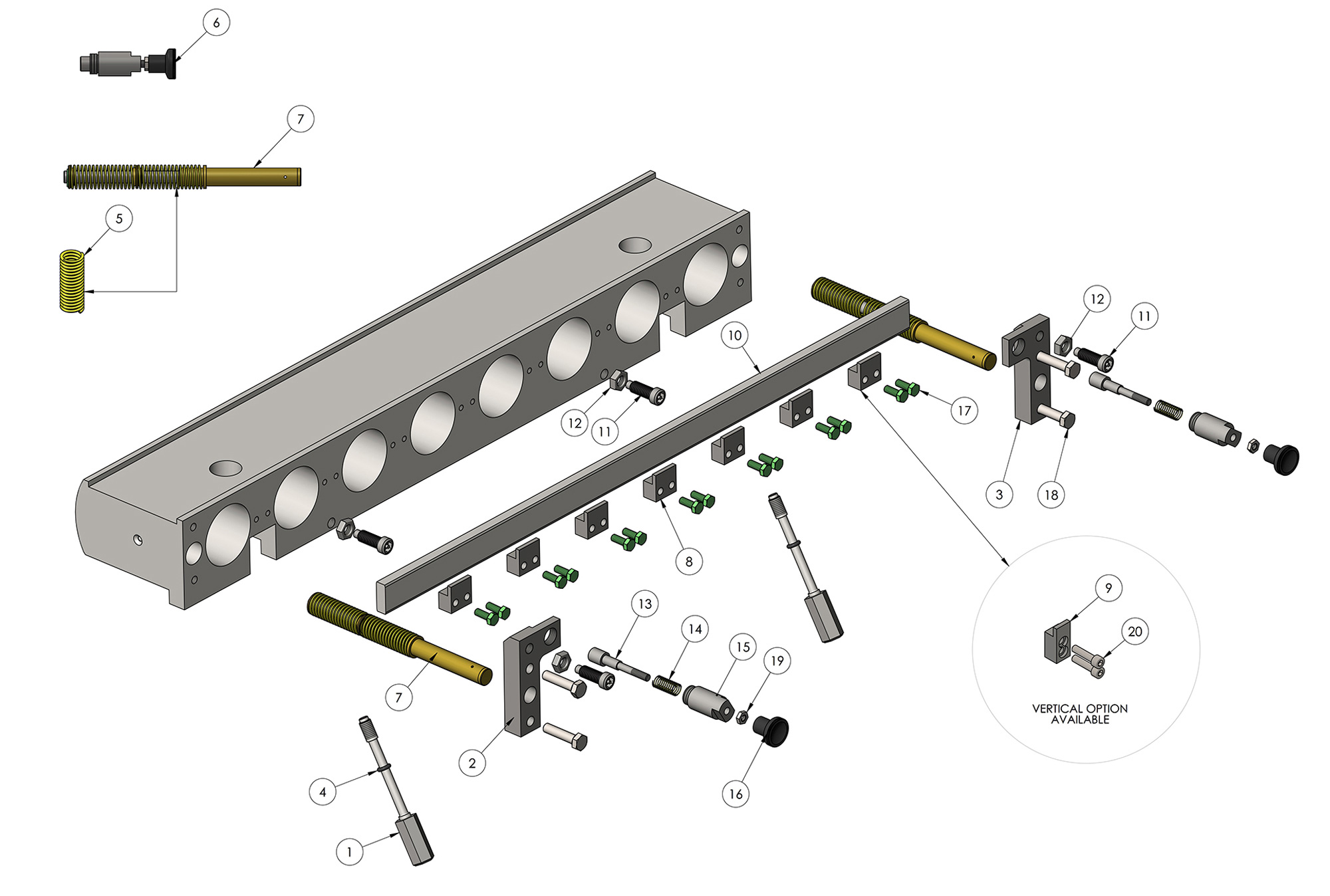

| Part | ID |
|---|---|
| 01. STUD BOLT RETAINER ASSEMBLY | 99810097 |
| 02. PLUNGER BRACKET LH | 99810233 |
| 03. PLUNGER BRACKET RH | 99810234 |
| 04. O RING | 99810248 |
| 05. PLUNGER SPRING | 99810251 |
| 06. PISTON RETAINING BAR BOLT ASSEMBLY | 99801009 |
| 07. PLUNGER ASSEMBLY | 99801016 |
| 08. RETAINER HORIZONTAL | 99811112-H |
| 09. RETAINER VERTICAL | 99811112-V |
| 10. RETAINING BAR | 99801008 |
| 11. JACKING BOLT | 99810260 |
| 12. M10x1 LOCK NUT | 99810261 |
| 13. PLUNGER SHAFT | 99801011 |
| 14. SPRING | 99810034 |
| 15. PLUNGER BODY | 99801010 |
| 16. KNOB | 99801014 |
| 17. M6 x 16 Hex Head | BOLT |
| 18. M8 x 34 Hex Head | BOLT |
| 19. M6 Half Nut | NUT |
| 20. M6 x 25 Socket Cap | BOLT |
